Description
Specifications:
|
Model |
S5331R |
|
Solder Joint Range |
X500* Y1/300*Y2/300*Z100mm（XxYxYxZ） |
|
Solder Time |
1.0~1.5s/point |
|
Repeat Positioning Accuracy |
±0.002mm |
|
Solder Wire Diameter |
0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
|
Air source |
0.4-0.6 MPA |
|
Axis |
5 |
|
Program Capacity |
999 files, each file can save up to 999 points |
|
External Dimensions (W x D x H) |
820mm x 600mm x 800mm |
|
Weight |
about 65kgs |
Features:
1. Applicable for different products, soldering temperature can be set freely.

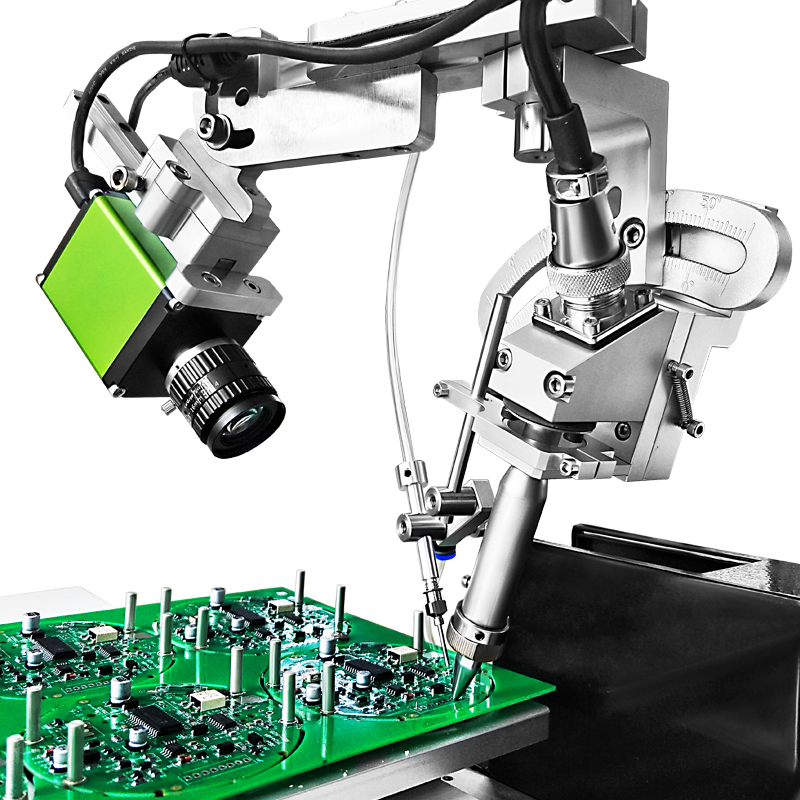

2. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3. Numerically controlled temperature (static air condition: ±1℃)

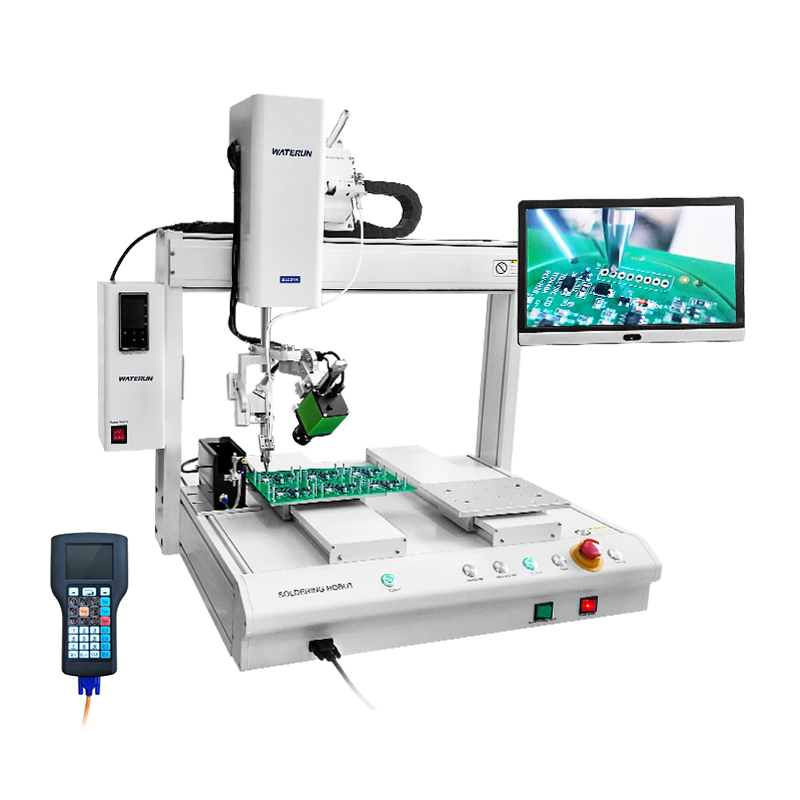

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
5. In the soldering process, the solder tip has rapid heat recovery and a long life span.
