Description
Specifications:
|
Model |

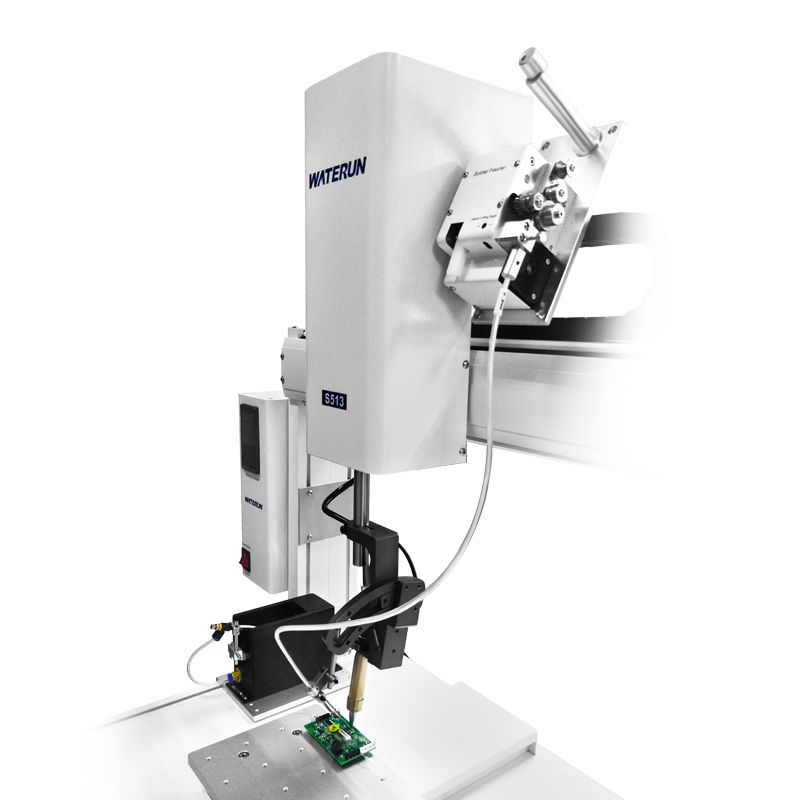

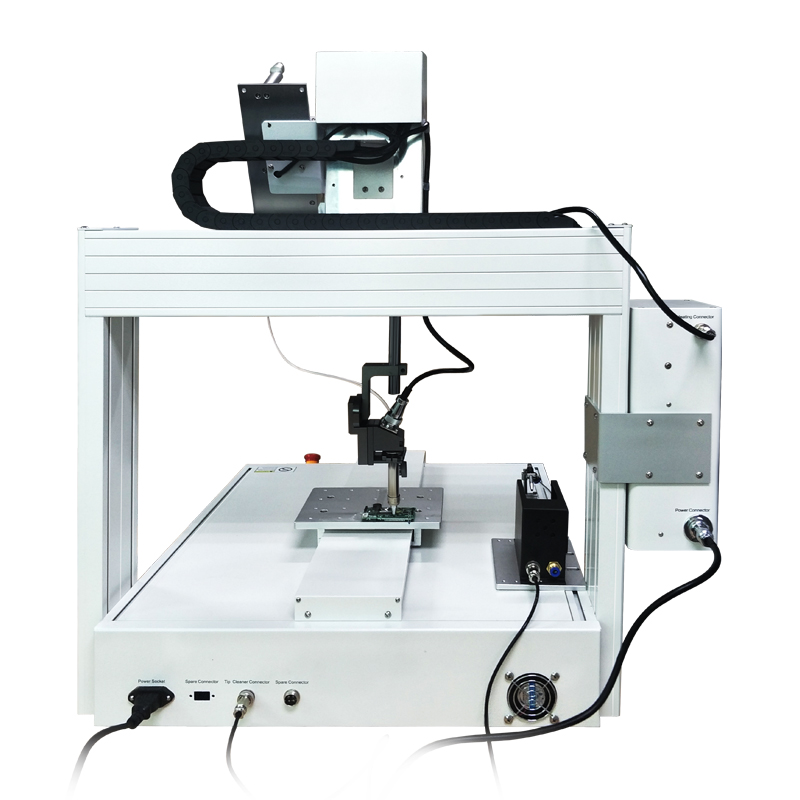

S513 |
|
Voltage |
110V / 220V |
|
Heating Power |
150W |
|
Preheating Temperature Range |
0℃~500℃ |
|
Axis |
4 |
|
Operating Range (X * Y * Z) |
400 x 400 x 100mm |
|
Movement Speed |
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec |
|
Repeat Positioning Accuracy |
±0.002mm |
|
Resolution |
0.01mm |
|
Maximum Load Weight |
8kg (for work platform) |
|

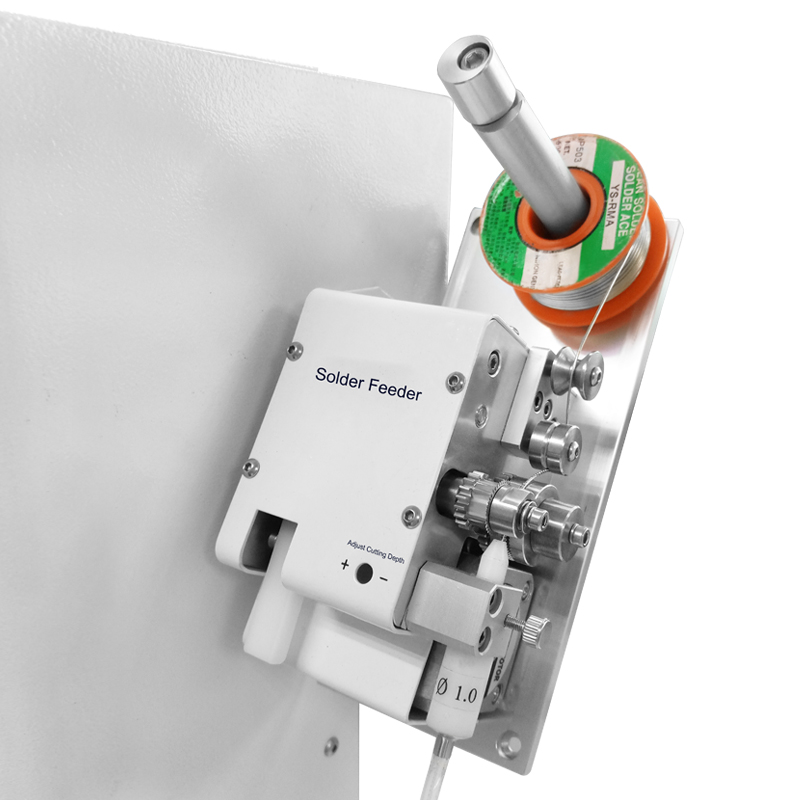

Solder Wire Diameter |
0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
|
Demo File Capacity |
≤999files, max 1994 points for each file |
|
Program Capacity |
max 255 programs |
|
Operate Temperature |
0℃~40℃ |
|
Operate Humidity |
20~90% |
|
External Dimensions |
720mm x 700mm x 810mm |
|
Weight |
about 66kgs |
Features:
1. Applicable for different products, soldering temperature can be set freely.

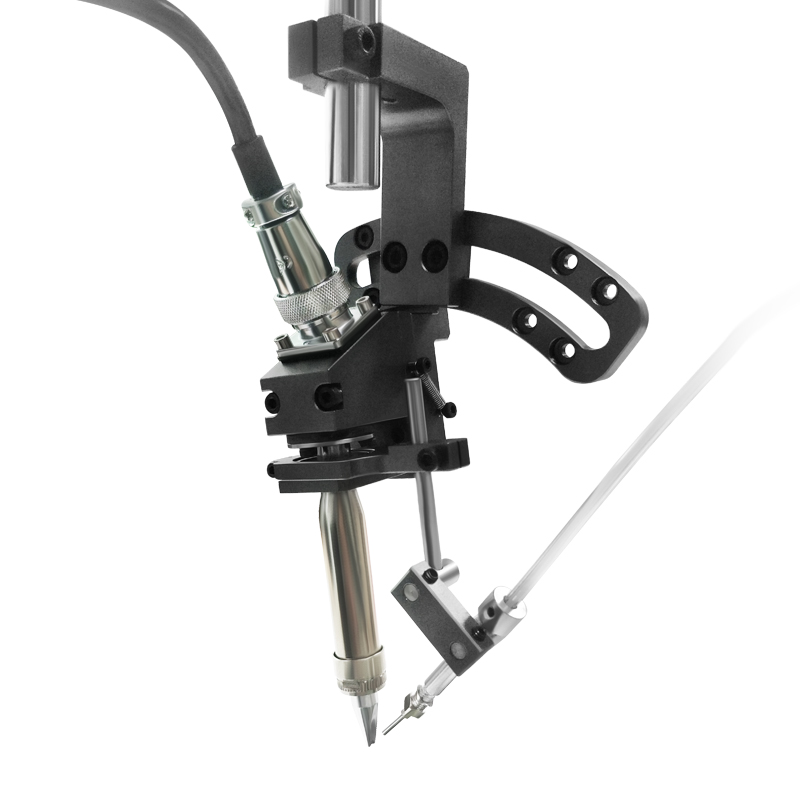

2. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3. Numerically controlled temperature (static air condition: ±1℃)

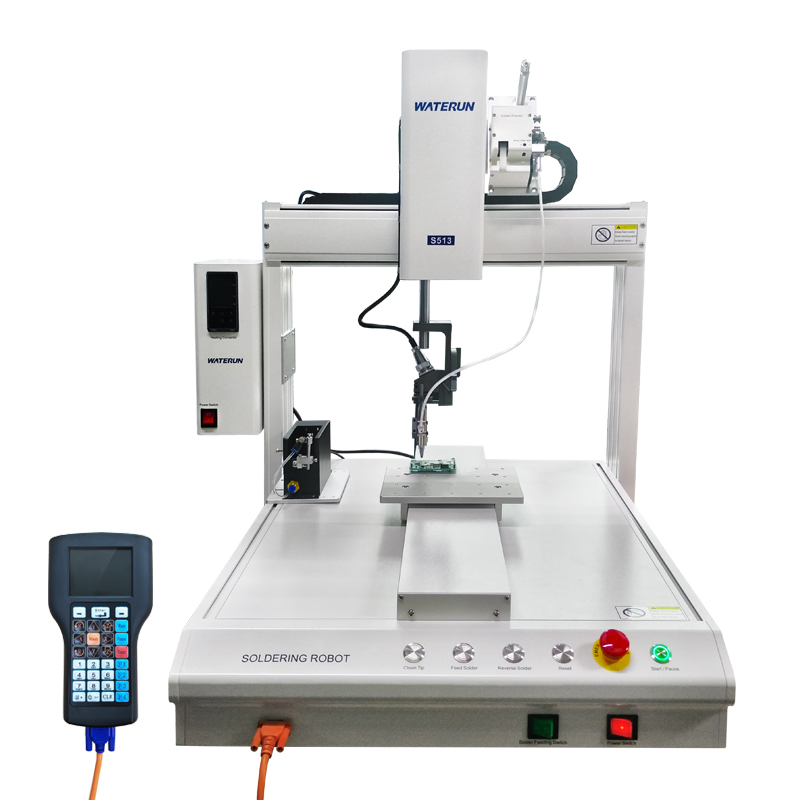

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
5. In the soldering process, the solder tip has rapid heat recovery and a long-life span.
