DJ-5331

DJ-5331

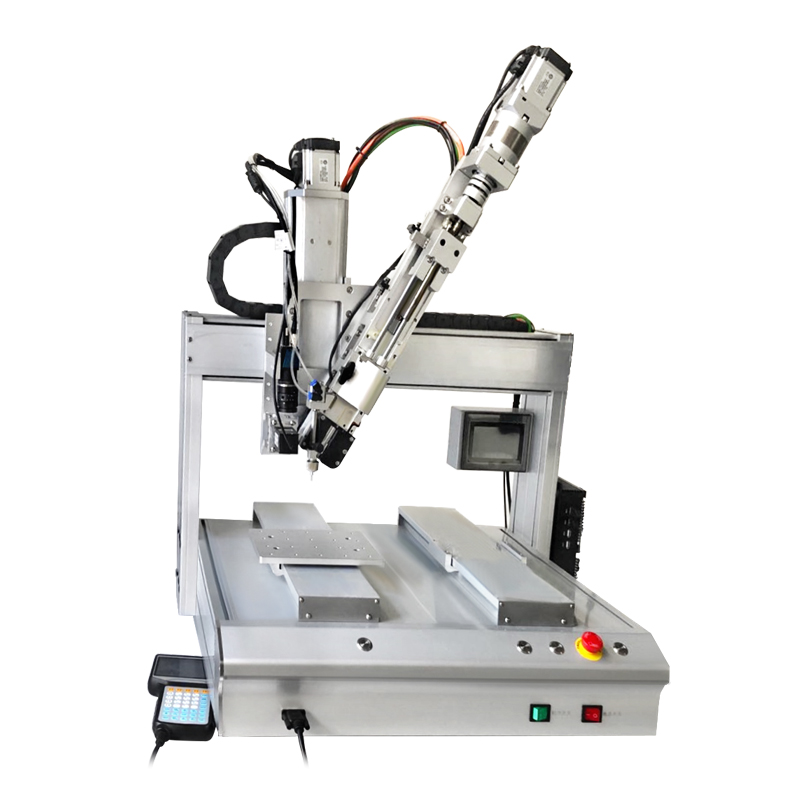

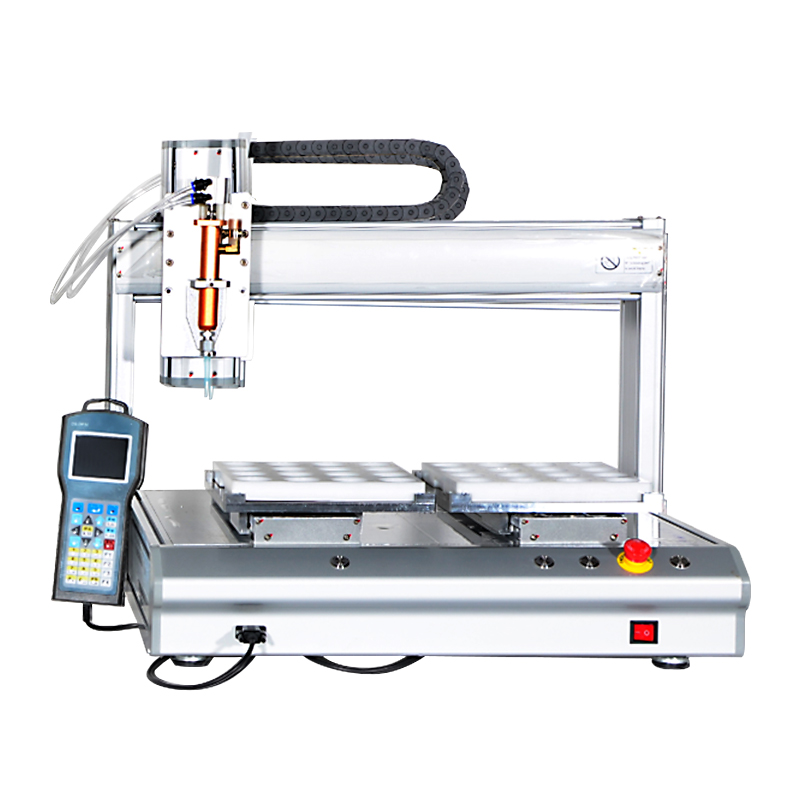

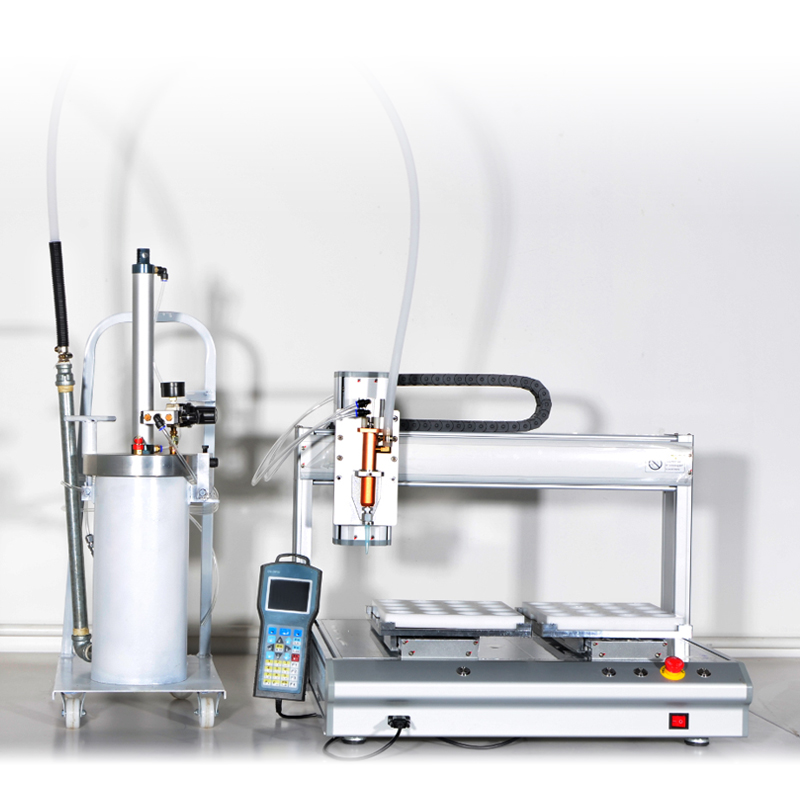

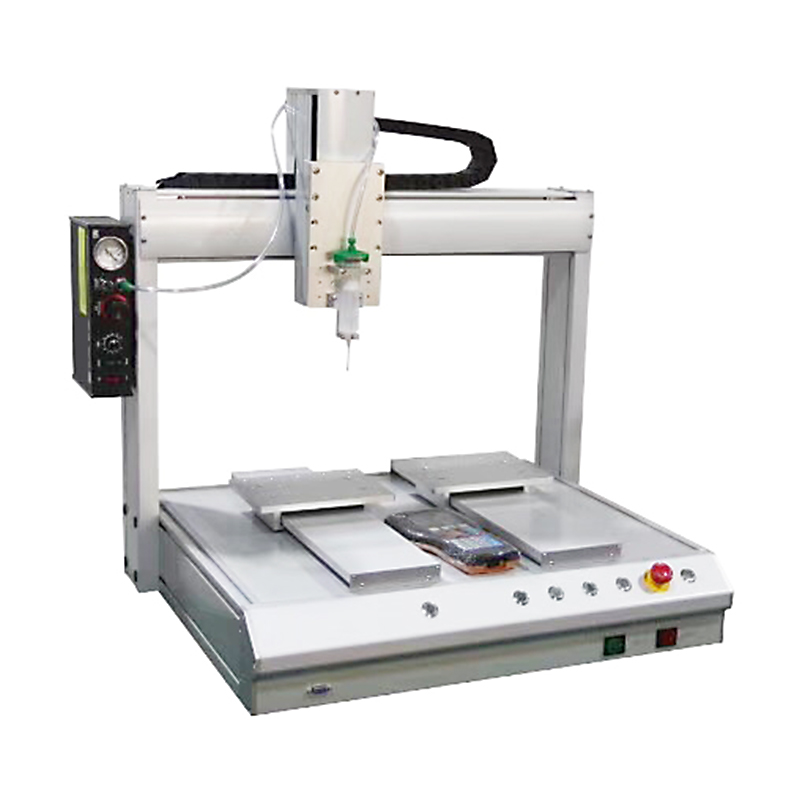

Glue Dispensing Robot; DJ-5331 Desktop 4-AXIS Glue Dispensing Robot


Our glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can rapid recovery cost.

Categories: ,

Description

Specifications:

Model

DJ-5331

Voltage

110V / 220V AC

Operating Range (X * Y* Y * Z)

X500 * Y1/300*Y2/300* Z100mm

Repeatability  Accuracy

±0.02mm

Movement Speed

0.1~800mm / sec

Maximum Load Weight

8kg / 4kg /4kg/3kg (X/Y/Y/Z)

Editing Mode

Teaching Pendant

Program Capacity

999 programs

Movement Patterns

Point-to-point / straight line / point, line,circle,ac

External Dimensions

650mm x 630mm x 680mm (WxDxH)

Weight

about 60 kgs


Features:

1. Double Y-Axis can achieve higher efficiency and more convenient operation.

2. Replace human labor and save labor cost.

3. Simple and convenient operation, high speed and precise control.

4. Realize the precise dispensing by the high-precision motor.

5. High-performance Linear structure platform with nice appearance.
